Category: Old School Drafting

KOH-I-NOOR RAPIDOGRAPH TECHNICAL PENS – Patented Rapidograph pens provide two airtight seals when pen is in clamped position. No humidification required. No spring-tension seal to jam with dried ink. For all drafting and graphic arts applications. Airtight dry double seal cap that allows instant startup for increased productivity. A consolidated range of point sizes, available in stainless steel. Rapidograph Stainless steel pens for use on paper or vellum.

Available with stainless steel drawing points in dual-designated line widths, refillable see-through ink cartridge that can be used on drafting film, vellum, or tracing paper

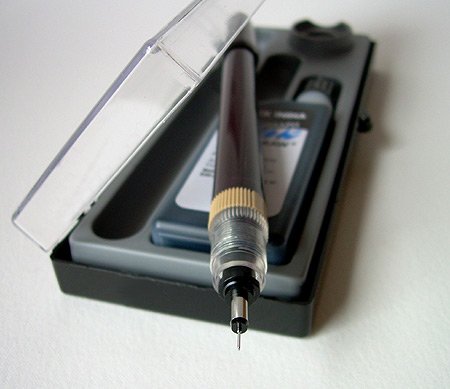

Koh-I-Noor Rapid sketch Technical Pens are remarkably versatile pens that handle like a pencil, moving in all directions without snagging or digging into the drawing surface. Includes a .25mm 62D series stainless steel nib and Ultra draw waterproof black ink.

Sets provide storage for technical pens in a convenient hinged-lid case with push button release. 7-pen set includes one each of 3×0, 00, 0, 1, 2, 3, and 4 pens, a bottle of Koh-I-Noor(R) waterproof, black India drawing ink, and two nib keys. 4-pen set includes one each of 00, 0, 1, 2 pens, and universal ink.

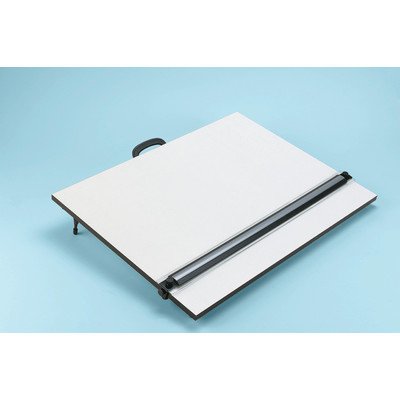

With an aluminum parallel straightedge that eliminates the need for a T-square, this portable drawing board will be perfect for classroom or on site use. It features metal brackets to hold materials in place and is highlighted by an inking edge for clean, smudge free results when using pens or pencils. Professional-quality portable drawing and drafting board with built-in parallel straightedge for all kinds of creative and technical applications. Perfect for students and those who need an accurate drawing surface but dont have the space for a full-size drafting table. Fully assembled. Aluminum straightedge with soft, rubber edges for enhanced grip, comfort and control. Straightedge glides smoothly up and down the board while the cross-wire and pulley system underneath keeps it parallel in any position. Crystal clear acrylic blade is 0.12″ thick and includes inking edges underneath to minimize smudging. Blade clearance is 3/16″ for use with foam board, cutting mats, and more. Straightedge has brake mechanisms on each end for secure, positive locking in any location on the board. Large brake knobs include rubber grips for comfort. Straightedge has top-mounted adjustment knobs on each end for fine-tuning parallelism. Especially useful when reinserting a drawing on the board for additional work. Smooth, white Melamine surface for bump-free drawing. Particle board substrate is 0.63″ thick for strength and durability. Folding metal legs are set at an angle to prevent accidental collapse and include rubber-dipped ends to prevent scratching. PXB36 has 5″ legs. Boards can be used in the elevated or flat position. Rubber grip tracks underneath allow front of board to overhang a table edge up to 8″. This increases the working angle and brings the drawing surface closer to the user. Compact, folding design for convenient transportation and storage. No assembly required. Ready to use. Drawing board is CARB compliant and all components are phthalate and l

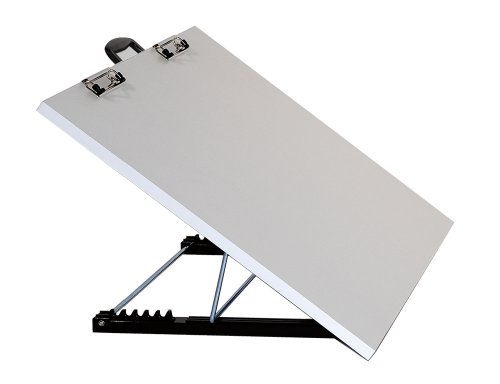

The Scheewe Portable Art Studio starts with a light weight white board with comfortable handle then adds a Clip to hold you block, pad or painting surface while you work. Equipped with a six position adjustable stand. Board size 20-inch by 26-inch. This model has double clip and adjustable height.

US American Standard 12″ Imperial Inch to Foot Architect Scale Ruler Scale 3/32 3/16 1/8 1/4 3/8 1/2 3/4 1 1+1/2 3 inches to the foot, Length: 30cm 12″ Made of white plastic with black letters and white, green and red coloured slots. High quality item supplied in rigid transparent plastic case.

Length: 15cm Made of white plastic with black letters and white and red coloured slots. High quality item supplied in original packaging. interior pen technical ieee 3d rule handbook guide rule lighting cad auto aia technical building installation services design drawing template stencil inch electrical surveyor civil mechanical structural 12 architect architecture engineer engineering to are board art modern layout compass room tool landscape designer decoration decorate construction table planning kitchen bathroom college supply artist set crafts couch office bedroom bedrooms free sale stage aia metric furnishing decor ideas wall living dwg symbol school student stensil pencil flat case box

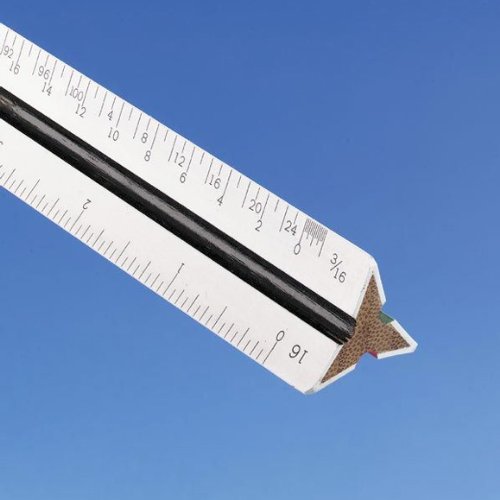

Professional-quality scales with a bamboo core, white high-impact plastic laminated faces and tapered edges. Machine engraved divisions and colorcoded furrows. Supplied in hard plastic case. Compare to Staedtler and Helix

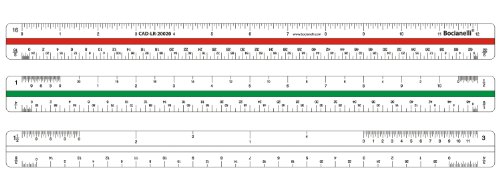

Manufacturer: Leniar Model: CAD-LR-20013c Length: 15cm Made of silver anodized aluminium metal with black letters and black, green and red coloured slots. This small scale rule is not only shorter than a standard ruler – it is also thinner, which makes it a really pocket sized. High quality item supplied in original packaging.

alvin staedtler berol chartpak interior pen technical ieee 3d rule handbook guide rule lighting autocad aia technical building installation services design drawing template stencil inch electrical surveyor civil mechanical structural 12 architect architecture engineer engineering to are pilot rapidograph uno board microstation art modern layout compass room tool landscape designer decoration decorate construction table planning kitchen bathroom isograph college supply artist set koh-i-noor crafts couch office bedroom bedrooms free sale stage aia metric furnishing decor ideas wall living dwg symbol school student stensil pencil flat case box

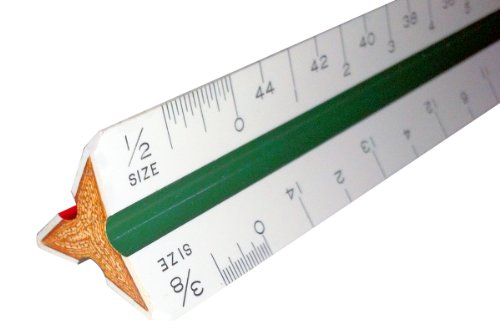

Professional-quality scales with a bamboo core, white high-impact plastic laminated faces and tapered edges. Machine engraved divisions and color coded furrows. Compare to Staedtler and Helix.

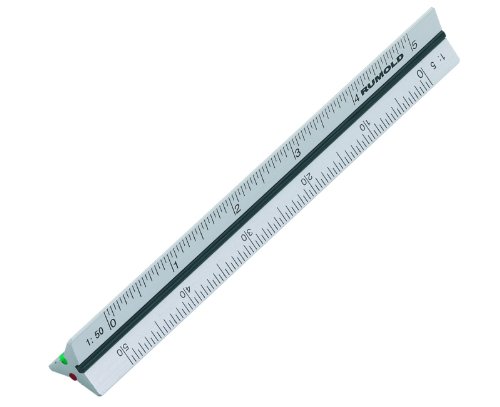

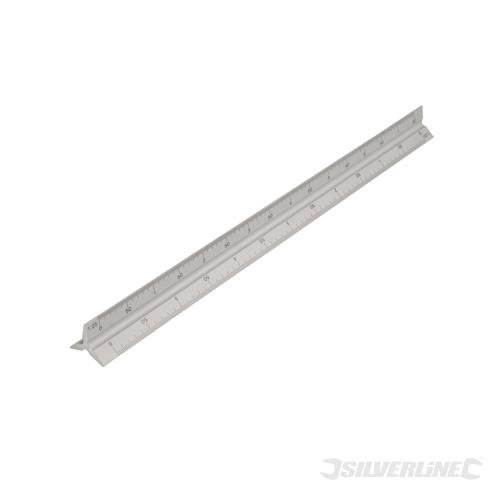

Cast aluminium scale rule with triangular body for safer cutting and scoring of materials. Clearly marked metric graduations. 6 scales allow precision drawing for architects, engineers and carpenters. Concave base reduces smearing when drawing. Scales 1:20, 1:25, 1:50, 1:75, 1:100, 1:125. Length 300mm.
